Land Leveler’s

MK MARTIN LAND LEVELER

10′ – 800kgs – $7,999 + GST
12′ – 900kgs – $8,999 + GST

These rugged scrapers come in a range of sizes from 8 to 12 feet to fit your needs and your equipment. Standard on all models is our 1/2 inch thick reversible hardened cutting edge, ready to smooth out the bumps and fill in the hollows.

Cutting depth is controlled by a 3”x8” hydraulic cylinder so you can decide how much of a bite to take and adjust on the go. All models are well suited for feedlot and soil reclamation or swale cutting.

HARDENED CUTTING EDGE

1/2″ x 6″ Hardened Cutting Edge

10 INCH JACK

10″ Jack (15″ Available on Request)

HYDRAULIC LIFT CYLINDER

3″ x 12″ Hydraulic Lift Cylinder

TILT CYLINDER

3″ x 6″ Tilt Cylinder (10° each way)

ADJUSTABLE SKID BARS

TILT INDICATOR

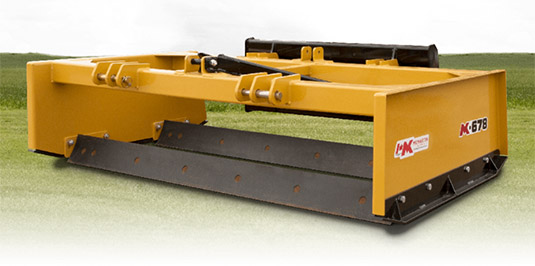

MK MARTIN GRADER LEVELER

This two in one combination of leveling and scraping makes short work of your grading jobs. The first blade attacks the high spots cutting them down to size, the second blade further scrapes anything the first missed and fills in the hollows. With two blades cutting and filling it takes much less time and fewer passes to achieve the even distribution of material you are looking for.

The scraper can be 3PH mounted, or equipped with a skid steer adaptor plate puts the work in front of you.

1/2″ REVERSIBLE HARDENED CUTTING EDGES

With two half inch reversible hardened cutting edges material is quickly leveled or redistributed to fill low points as the unit passes.

BOLT-ON SKID SHOES

OPTIONAL SKID STEER ADAPTOR

OPTIONAL 3PH ADAPTOR
